Fields of the Future: Agro-Innovation of Laser-Weeding Robots

{{ vm.tagsGroup }}

28 Nov 2023

6 Min Read

Nellie Chan (Editor)

IN THIS ARTICLE

Step into the future of agriculture with laser-weeding robots — pioneering engineering and cutting-edge technology revolutionising weed management!

From afar, they may resemble the familiar silhouette of tractors diligently ploughing through boundless fields. However, as you draw near, the agricultural landscape unfolds a futuristic scene with the introduction of laser-weeding robots.



In the ongoing toil of innovation to supply the multiplying demands of a growing global population, agriculture is undergoing a robotics revolution. The arrival of these novel inventions signals a significant departure from traditional farming practices, ushering in a fusion of precision engineering and laser-weeding technology. This article takes a closer look at the inner workings of these machines, unravels the marvels of their engineering, assesses their advantages and disadvantages, and contemplates their implications for the future of agriculture.

Decoding the Instruction Manual

Laser-weeding robots mark a quantum leap forward in precision agriculture, providing an efficient and cost-effective sustainable solution to weed management. In stark contrast to conventional methods that rely on herbicides or manual labour, these robots leverage advanced optics and artificial intelligence (AI) to identify and destroy weeds with unprecedented precision. A prime example is the Autonomous LaserWeeder by Carbon Robotics, which can kill over 100,000 weeds per hour, all day and all night.

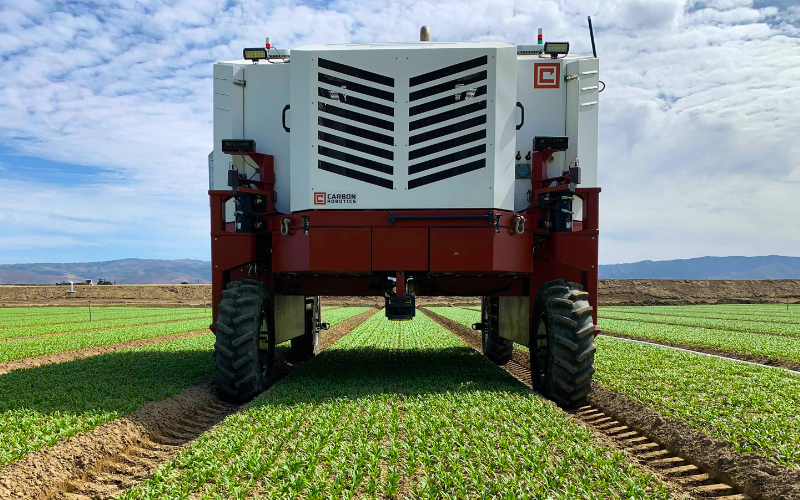

Autonomous LaserWeeder by Carbon Robotics

Photo credits: Carbon Robotics

The technology harnesses lasers to accurately target unwanted plants among those wanted in the cultivated area. Bottom-mounted cameras scan the area in real time, and the onboard computer identifies the plants based on their size, shape, and colour. Once a weed is detected, the laser system activates, delivering a focused burst of energy to the weed, effectively eradicating it.

Engineering a Lean, Mean, Weed-Killing Machine

The engineering of laser-weeding robots stands as a testament to the seamless integration of innovative technologies. These robotic platforms are designed with careful attention to detail, combining various components to ensure optimal performance.

  • Optical Systems:

Necessary for the success of laser-weeding robots is the development of advanced optical systems. Equipped with 12 high-resolution cameras and crop and weed computer vision models, these core components of the system work collaboratively to form a comprehensive, real-time understanding of the field. Playing a pivotal role, these computer vision models are trained extensively on large datasets containing images of diverse crops and weeds. This training is intended for the algorithm to learn and discern the distinct visual characteristics of each, thereby enabling the robot to properly differentiate between crops that require preservation and weeds that demand elimination.

  • Laser Technology:

At the heart of laser-weeding robots lies the precision engineering of laser technology. The 150W carbon dioxide (CO2) lasers, with a 3mm accuracy, equip the robots to precisely target specific plants based on their unique optical signatures, including size, shape, and colour. Each robot is armed with 8 independent weeding modules, ready to fire every 50 milliseconds. This sophisticated setup would also involve servo motors, actuators, and electromechanical systems for precise positioning and laser activation. Working in tandem, these components translate the robot's decision-making — informed by real-time data analytics — into exact actions in the field. The synergy between laser technology and actuation mechanisms empowers precision in weed management, minimising crop collateral damage while maximising the robot's accuracy in dynamic agricultural environments.

  • Autonomous Navigation:

Guiding laser-weeding robots through fields requires state-of-the-art autonomous navigation. Supported by advanced control systems, such as Global Positioning System (GPS) technology, front and rear parallax drive cameras, a computer vision furrow model, and Light Detection and Ranging (LiDAR) sensors, these robots meticulously plot their course with a nuanced understanding of spatial dynamics. The control systems assist in maintaining stability and accuracy during movement, facilitating the robot's navigation through varying terrains, slopes, and obstacles with ease. The holistic incorporation of advanced control systems within the framework of autonomous navigation makes sure that the robot not only stays within the field but also 'slays' all weeds within it.

Furrows in field

… and (Weeding) Pains

  • High Initial InvestmentThe adoption of laser-weeding technology entails a substantial initial investment. The cost of implementing these robotic systems may be a barrier for smaller or resource-limited farms.
  • Technical Challenges: The intricate engineering of laser-weeding robots presents a set of technical challenges. Sustaining the optimal performance of optical systems, ensuring precise weed detection, and identifying and rectifying malfunctions calls for continual technical expertise and support.
  • Energy Consumption: Laser-weeding robots consume a considerable amount of energy, especially during extended periods of operation over large fields. This energy requirement raises concerns about the ecological footprint of these machines, more so if not powered by sustainable sources.

Cultivating the Future of Agriculture

The introduction of laser-weeding robots to agriculture heralds a new era in the industry's evolution. As technology forges ahead, it is foreseeable that these robots will become more accessible and adaptable to all farming scenarios. The future also foretells further refinement in engineering, overcoming current limitations and welcoming laser-weeding robots as a staple in modern farming practices.

  • Scalability and Affordability: Steady research and development efforts aim to make laser-weeding robots more scalable and affordable. As economies of scale come into effect and manufacturing processes become more efficient, the cost barriers associated with these technologies are likely to lower, making them accessible to a larger demographic of farmers.
  • Integration with Other Technologies: The future of agriculture is intertwined with the integration of various technologies. Laser-weeding robots are likely to partner with other autonomous systems, such as drones for aerial surveys or soil sensors for real-time data collection. This integration could improve the overall efficiency and productivity of farming operations.
Man flying drone over field
  • Application to Different Plant Species: Scientists and engineers are expanding the capabilities of laser-weeding robots to cater to a wider range of crops. Training the technology for different plant species and farming practices will diversify its applicability, further rooting its role in the agricultural landscape.

Conclusion

Laser-weeding robots have emerged as the forerunners of a transformative age in agriculture. In the face of challenges surrounding sustainability and efficiency, these visionary machines offer us a glimpse into a future where technology not only reimagines how we cultivate the land but also innovates precise solutions to the enduring problem of weed management. While the widespread adoption of these automated marvels may still be on the horizon, the relentless pursuit of engineering ingenuity continues to push the boundaries of what we once deemed possible. Therefore, it is not merely a question of 'if' but 'when' these robotic stewards will seamlessly integrate into the agricultural landscape, revolutionising the way we work in the fields of the future.
